Description
Shadow-Caster LED Lighting SCM-PDCH4
Power Distribution Box; For Use With Single And Multi Color Lights; Up To 10 Amp Per Channel; 12/24 Volt; With Digital Overload Protection; Black; 7.9 Inch Length x 3 Inch Width x 1-1/2 Inch Depth; With Four Stainless Steel Screws And Prewired Mating Connectors
Attributes
- Recommended Use: Two Or More Underwater Lights
- Voltage Rating: 12 To 24 Volt
- Power Rating: 10 Amp
- Receptacle Type: No Receptacle

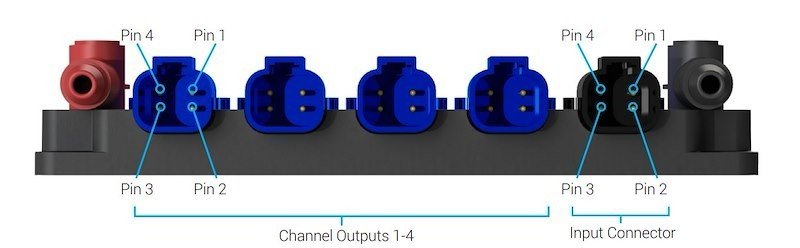

- Number Of Connections: 4
- GFCI/ Overload Protection: Yes
- Length (IN): 7.9 Inch
- Width (IN): 3 Inch
- Height (IN): 1-1/2 Inch
- Color: Black
- UL Listed: No
- With Flip Cover: No
- Marine: Yes
Product Description

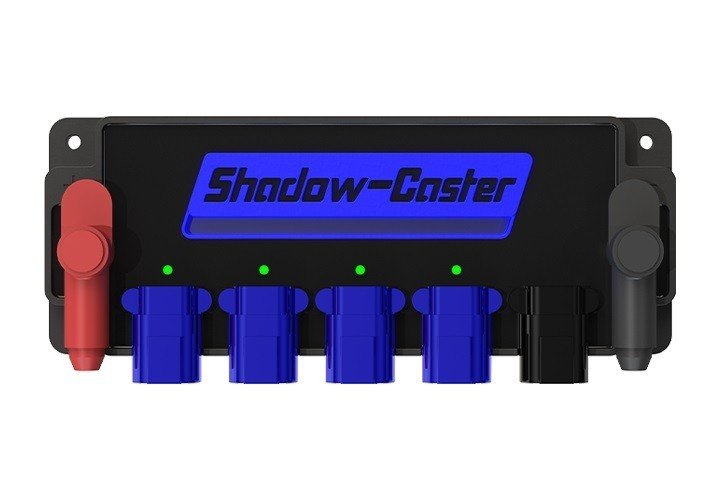

The SHADOW-CASTER® Power Distribution Box is a 4-position power distribution box that provides a convenient way to connect up to 4 SHADOW-CASTER® underwater lights. Digital over-current protection for each output insures safe operation of multiple lights and provides an easy way to manage the relatively high current switching needs of multiple light installations. The Power Distribution Box is housed in a compact waterproof box that is ideal for mounting in bilge and wet locations.
Features & Benefits
- Compact Remote Power Control Box
- Green/Red LED Indicates The Status Of Each Output Channel
- Individual Digital Over-Current Protection For Each Channel
- Compatible With SHADOW-CASTER® Single And Multi-Color Lights
- Recommended When Installing Two Or More Underwater Lights
- Can Be Used With A Helm Mounted Switch Or With No Switch When Using A Compatible SHADOW-CASTER® Controller
- Blue SHADOW-CASTER® Back Light Indicates State
- Limited 3 Year Warranty
